When an electric motor fails, the impact can range from minor inconvenience to significant operational downtime. In industries such as HVAC, manufacturing, and industrial automation, motor reliability is absolutely critical. According to the U.S. Department of Energy, electric motors consume about 70% of electricity in industrial applications. This makes efficient operation and proactive maintenance not just a best practice—but a necessity.

1. Common Signs of Impending Motor Failure

Identifying early symptoms is essential to prevent complete breakdowns and costly repairs. Studies from the Electrical Apparatus Service Association (EASA) reveal that over 60% of motor failures could have been avoided with earlier detection.

Some key signs to watch for include:

  • Unusual Noises: Grinding, squealing, or humming often indicate worn bearings, rotor misalignment, or electromagnetic imbalances.
  • Overheating: Excessive heat signals overloading, poor ventilation, or insulation damage. Operating above rated temperature shortens motor lifespan drastically.
  • Excessive Vibration: Caused by misaligned shafts, unbalanced loads, or damaged bearings. Vibration analysis tools help detect problems early.
  • Burning Smells or Smoke: Indicative of insulation failure, internal shorts, or overcurrent damage, which can lead to catastrophic failure if unchecked.
  • Spikes in Energy Consumption: Sudden power use increases may point to winding faults, phase imbalance, or mechanical drag.
  • Frequent Tripping: Repeated breaker or overload trips suggest overcurrent conditions or ground faults.

2. Structured Troubleshooting: Step-by-Step Diagnosis

A methodical approach ensures efficient and accurate diagnosis of motor issues, saving time and cost.

Ensure Safety First
Always follow OSHA lockout/tagout protocols. De-energize the motor and wear proper PPE. Conduct a visual inspection for burnt terminals, damaged insulation, or foreign objects.

Check Electrical Supply
Electrical faults cause about 20% of motor failures. Use a multimeter to verify voltage within ±10% of nameplate values. Check phase balance in three-phase motors. Inspect contactors and overload devices for corrosion or arcing. Tighten loose connections.

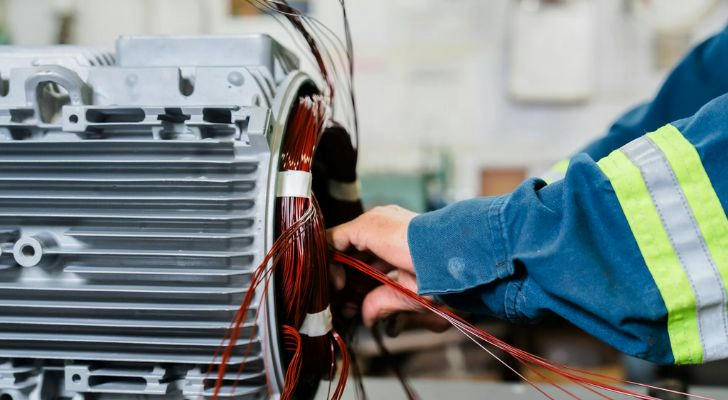

Test Insulation and Windings
Use a megohmmeter to measure insulation resistance, aiming for at least 1 megohm per 1,000 volts of rated voltage. Low resistance signals moisture or insulation breakdown. Measure phase-to-phase resistance; imbalances over 10% may indicate winding issues.

Inspect Bearings and Mechanical Components
Over half of motor failures are mechanical. Manually spin the shaft—grinding or stiffness points to bearing wear. Use alignment tools to detect shaft misalignment exceeding 0.002 inches, which causes vibration. Follow lubrication schedules strictly to avoid over- or under-greasing.

Evaluate the Load and Application
Confirm the motor is properly sized and not overloaded. Check driven equipment like belts, fans, pumps, or compressors for blockages or imbalance that stress the motor.

3. Preventative Habits to Reduce Failures

Preventive maintenance saves money and downtime. The International Society of Automation (ISA) reports condition-based monitoring can cut repair costs by up to 50%.

  • Routine Inspections
    Schedule regular cleaning of ventilation, bearing lubrication, and measurements of current, temperature, and vibration. Log data to identify trends and act early.

  • Protect Against Harsh Environments
    Use NEMA-rated enclosures where dust, moisture, or temperature extremes prevail. Remember, every 10°C rise above rated temperature halves insulation life.

  • Use Smart Starters
    Installing Variable Frequency Drives (VFDs) or soft starters reduces startup current, lowering mechanical and thermal stress.

  • Train Staff to Spot Issues
    Equip technicians and operators with knowledge to recognize warning signs. Encourage timely reporting and use real-time monitoring tools.

4. Final Thoughts

Electric motor reliability is the backbone of smooth operations across many industries. With a systematic troubleshooting process, proper tools, and preventive maintenance habits, technicians can greatly reduce unexpected failures and costly repairs.

Mastering motor diagnostics is not just about fixing problems—it’s about preventing them, ensuring continuous uptime, and safeguarding revenue. This proactive mindset and skillset form one of the smartest long-term investments any technician or organization can make.
