Using IR Thermometers and Voltmeters Like a Pro

Infrared (IR) thermometers and voltmeters are among the most essential diagnostic tools in the skilled trades industry. Whether you're an HVAC technician, electrician, mechanic, or home inspector, knowing how to use these devices properly can significantly improve your accuracy, safety, and efficiency on the job. According to a 2024 report by the National Electrical Contractors Association (NECA), 68% of service call errors could be avoided with better diagnostic practices using these tools. Mastering them is not just about pressing a button—it’s about reading the context, understanding limitations, and interpreting the data like a pro.

1. Understanding What Each Tool Measures

Before diving into advanced use, it's critical to understand what IR thermometers and voltmeters are designed to do.

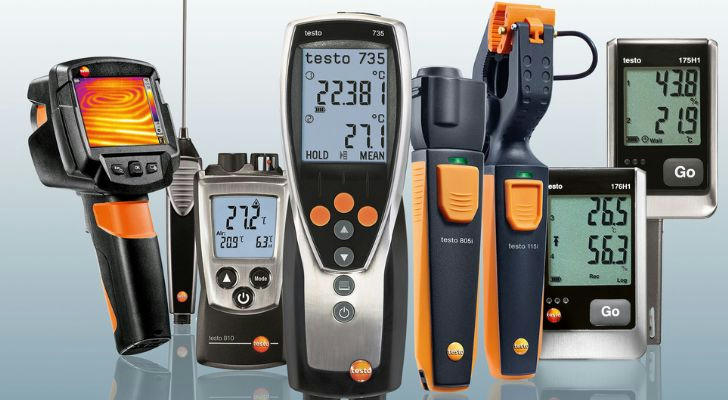

IR Thermometers use infrared sensors to measure surface temperatures without contact. They’re ideal for identifying overheating components, checking HVAC vents, or verifying refrigeration temperatures.

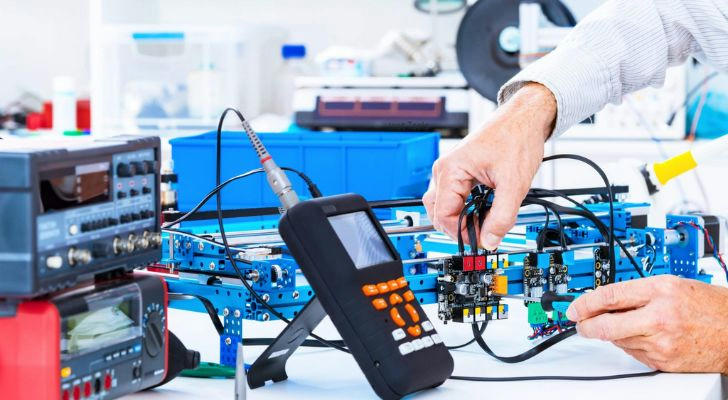

Voltmeters measure the potential difference between two points in an electrical circuit. Digital multimeters, which include voltmeter functionality, are indispensable for testing outlets, circuits, batteries, and components in everything from residential systems to industrial machinery.

Both tools provide real-time, actionable data—but only when used correctly.

2. Best Practices for IR Thermometer Use

To get professional-grade accuracy with an IR thermometer, you need more than just aim-and-click. Here are key tips:

Know the Distance-to-Spot Ratio (D:S) Every IR thermometer has a D:S ratio that tells you how wide an area it reads from a certain distance. A 12:1 ratio means at 12 inches away, you’re measuring a 1-inch spot. For precision, get close or use a high-ratio model.

Mind the Emissivity Setting Materials emit infrared energy differently. Shiny metals have low emissivity and may give false readings. Choose a model with adjustable emissivity or use black electrical tape to normalize reflective surfaces.

Avoid Environmental Interference Steam, smoke, dust, and even ambient light can affect readings. Always use the device in clean, stable conditions for best results.

Scan for Trends, Not Just Numbers Instead of relying on a single reading, scan across surfaces to detect abnormal hot or cold spots. A sudden spike in temperature could signal a failing motor, clogged duct, or electrical fault.

3. Voltmeters: Precision and Safety

When it comes to voltage testing, accuracy and safety are critical. A small mistake could damage equipment—or worse, harm the user. Here’s how pros handle it:

  • Start with a Visual Inspection Before even touching your voltmeter, inspect the wiring and components for visible damage, burns, or corrosion. Never test circuits that appear unstable.

  • Always Confirm Settings Ensure your voltmeter is set to the correct function (AC vs DC) and range. Using the wrong setting can result in false readings or blown fuses.

  • Use Proper Test Lead Technique Insert probes firmly, keep fingers behind protective flanges, and never bridge terminals unless necessary. Professionals minimize contact and movement to avoid arcs.

  • Verify Your Tool A quick test on a known live circuit before and after use confirms that your voltmeter is functioning correctly. It’s a small step that adds big safety assurance.

4. Common Mistakes and How to Avoid Them

Even experienced tradespeople can fall into bad habits. Here are frequent errors and how to sidestep them:

  • IR Thermometer Mistake: Measuring through glass or plastic. IR doesn’t pass through transparent materials—what you’re seeing isn’t the actual surface.
  • Voltmeter Mistake: Forgetting to discharge capacitors. Residual energy can give a false “live” reading or cause a surprise arc.
  • General Mistake: Relying solely on tools. Always combine digital readings with physical signs—heat, smell, sound—to confirm diagnoses.

5. Combining Tools for Advanced Troubleshooting

Professionals often pair IR thermometers and voltmeters for in-depth diagnostics. For instance:

  • In HVAC, use an IR thermometer to check vent output and a voltmeter to confirm compressor startup voltage.
  • In automotive work, test battery voltage with a voltmeter and scan engine components with an IR thermometer to find heat stress points.
  • For electrical panels, check for uneven heating across breakers (IR) and track voltage imbalance (voltmeter) to isolate faulty circuits.

Using both tools together gives you a clearer, safer, and faster path to resolution.

6. Calibrating and Maintaining Your Tools

To ensure consistent performance:

  • Calibrate Regularly: IR thermometers can drift over time; follow manufacturer guidelines for recalibration.
  • Replace Batteries Frequently: Weak batteries lead to slow responses or faulty displays.
  • Store Properly: Keep tools dry, dust-free, and in protective cases when not in use.

Well-maintained tools reflect a professional approach and reduce costly mistakes.

7. Conclusion

IR thermometers and voltmeters are more than just gadgets—they are extensions of a professional’s eyes and intuition. By understanding how these tools work, practicing proper usage, and combining readings with field knowledge, you can elevate your troubleshooting to expert level. Avoid common pitfalls, stay updated on best practices, and take care of your instruments.

In trades where precision, speed, and safety matter, using diagnostic tools like a pro isn’t optional—it’s the standard. As you grow your skills, let these instruments become your allies in delivering top-tier workmanship and reliable solutions every time.
